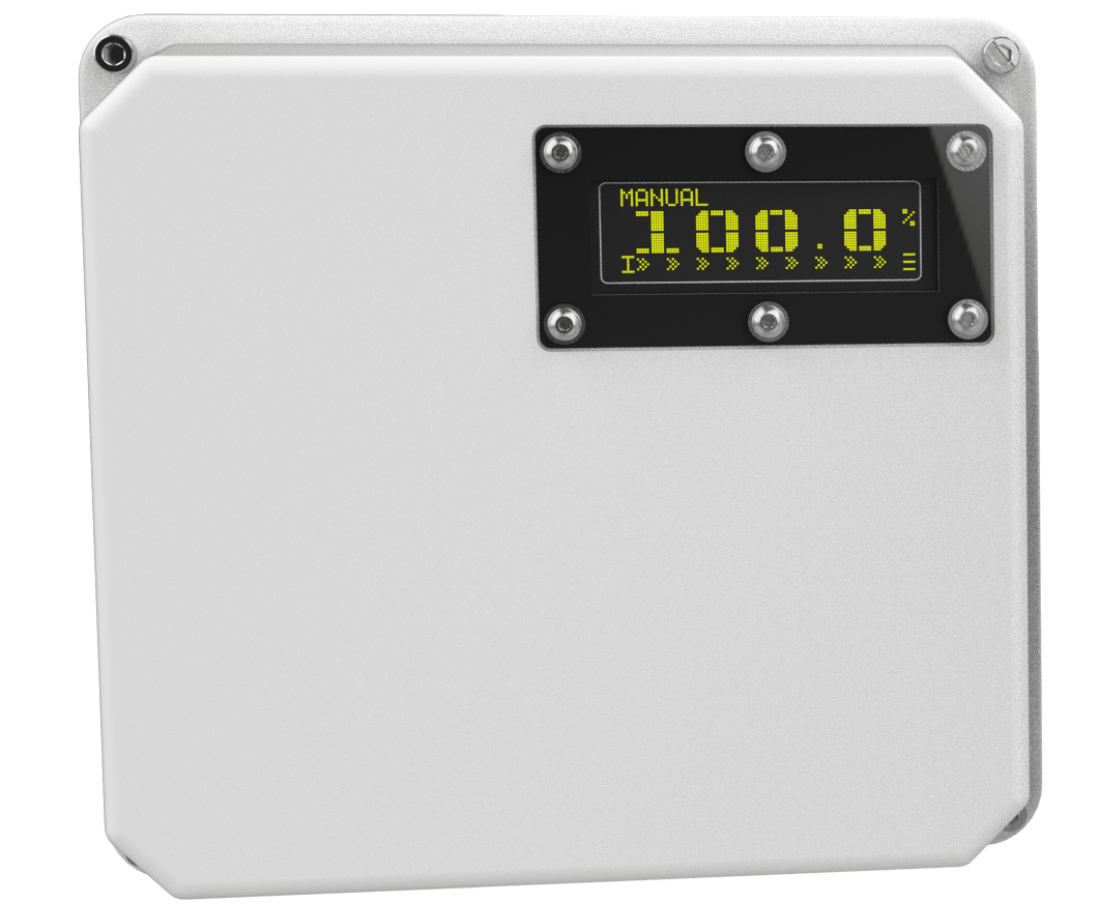

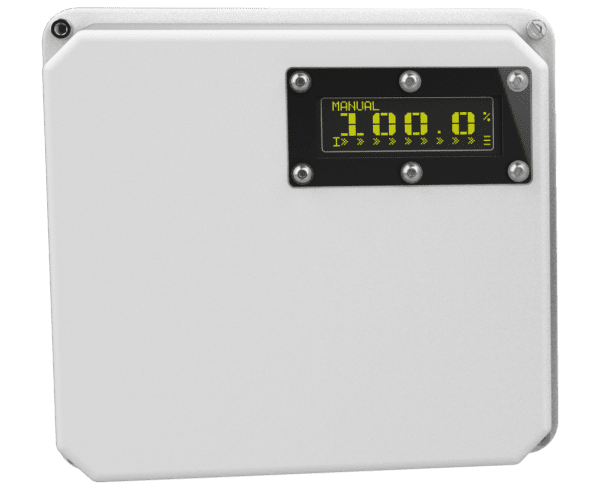

Pro HazS Actuator

The Pro HazS electric actuator is designed after the Pro HasX to be lighter weight and more compact while still maintaining the same features.

Key Features:

  • Output torques ranging from 400 in-lbs (45 Nm) to 1,200 in-lbs (135 Nm).
  • Multi-voltage acceptance, 12VDC, 24VDC/AC, 110-220VAC input.
  • Open/Close, Modulating and ModBus control all built into the base model.
  • Enclosures meeting the Hazardous Location standards of UL/CUL Class 1 Division 2 Groups A, B, C & D with Nema 4 Housing.
  • Easy to setup and calibrate using the firmware and LCD display.
  • Standard operating temperature range of -40°C to 60°C (-40°F to 140°F).
  • 100% continuous duty cycle as standard.
  • F05/F07 ISO5211 mounting base for easy adaption onto valves.
  • High level of position accuracy when using a control signal or ModBus.
  • Programmable driving speeds (default speed set to 70%).
  • Super-capacitor failsafe option with programmable fail position.
  • Unlimited programmable cycle span. (Multi-turn capable)
  • Open, Close and Error status relays included.
  • Manual override as an option.

Features

  • Output torques ranging from 265 in-lbs (30 Nm) to 26,550 in-lbs (3000 Nm).
  • Operating voltages include 12VDC, 24VDC, 120VAC, 220VAC & 380VAC.
  • Floating or modulating control with the option of position feedback or potentiometer (1K or 500Ω).
  • Enclosures meeting the Ex-Proof standards of CSA Class 1 Division 1 Groups C & D with IP68 ingress protection.
  • Standard operating temperature range of -25°C to 55°C (-13°F to 131°F) with the option for low temperature grease (-40°C/F applications).
  • Unique limit-switch setting design makes calibration far easier.
  • Two additional auxiliary switches provided as standard.
  • Heater and thermostat provided as standard.
  • Manual override as standard.
  • Highly compact design.
  • Base models have a high duty cycle (70%).
  • Visual position indicator through fixed lens plate.

Dimensions

Model Output Torque
(in-lbs / Nm)
Dimensional Drawing 3D STP
Pro HazS All Torques Link to pdf file Direct Download Link

Wiring Diagrams

Control Type Diagram
ON/OFF Control Link to pdf file
1-Wire Control Link to pdf file
2-Wire Control Link to pdf file
Modulating 4-20mA Link to pdf file
Manual Control Link to pdf file
Status Output Relays Link to pdf file
MODBUS Control Link to pdf file

Documentation

Pro HazX & HazS Brochure
Pro HazS Electrical Datasheet
Pro HazS IOM
Pro HazS UL Certificate

Additional information

modeloutput-torque-in-lbs-nmcontrol-type-feature Price Stock Quantity Action
Pro HazS 0400 PSUNI EPB H400 / 4512 24VDC, 24VAC & 100 240VAC W/ High Capacity Super Capacitors

Call or Login

In Stock
Pro HazS 0400 PS024 EPB H400 / 4512 24VDC & 24VAC W/ High Capacity Super Capacitors

Call or Login

In Stock
Pro HazS 0400 PSUNI EPB400 / 4524VDC & 100 240VAC W/ Super Capacitors

Call or Login

In Stock
Pro HazS 0400 PS024 EPB400 / 4524VDC W/ Super Capacitors

Call or Login

In Stock
Pro HazS 0400 PS120400 / 45100 240VAC Power

Call or Login

In Stock
Pro HazS 0400 PS024400 / 4524VDC Power

Call or Login

In Stock
HandwheelPRICE ADDERFor All Models

Call or Login

In Stock
Pro HazS 1200 PSUNI EPB H1200 / 13612 24VDC, 24VAC & 100 240VAC W/ High Capacity Super Capacitors

Call or Login

In Stock
Pro HazS 1200 PS024 EPB H1200 / 13612 24VDC & 24VAC W/ High Capacity Super Capacitors

Call or Login

In Stock
Pro HazS 1200 PSUNI EPB1200 / 13624VDC & 100 240VAC W/ Super Capacitors

Call or Login

In Stock
Pro HazS 1200 PS024 EPB1200 / 13624VDC W/ Super Capacitors

Call or Login

In Stock
Pro HazS 1200 PS1201200 / 136100 240VAC Power

Call or Login

In Stock
Pro HazS 1200 PS0241200 / 13624VDC Power

Call or Login

In Stock
Pro HazS 0600 PSUNI EPB H600 / 6812 24VDC, 24VAC & 100 240VAC W/ High Capacity Super Capacitors

Call or Login

In Stock
Pro HazS 0600 PS024 EPB H600 / 6812 24VDC & 24VAC W/ High Capacity Super Capacitors

Call or Login

In Stock
Pro HazS 0600 PSUNI EPB600 / 6824VDC & 100 240VAC W/ Super Capacitors

Call or Login

In Stock
Pro HazS 0600 PS024 EPB600 / 6824VDC W/ Super Capacitors

Call or Login

In Stock
Pro HazS 0600 PS120600 / 68100 240VAC Power

Call or Login

In Stock
Pro HazS 0600 PS024600 / 6824VDC Power

Call or Login

In Stock
Model

Pro HazS-0400-PS024, Pro HazS-0400-PS120, Pro HazS-0400-PS024-EPB, Pro HazS-0400-PSUNI-EPB, Pro HazS-0400-PS024-EPB-H, Pro HazS-0400-PSUNI-EPB-H, Pro HazS-0600-PS024, Pro HazS-0600-PS120, Pro HazS-0600-PS024-EPB, Pro HazS-0600-PSUNI-EPB, Pro HazS-0600-PS024-EPB-H, Pro HazS-0600-PSUNI-EPB-H, Pro HazS-1200-PS024, Pro HazS-1200-PS120, Pro HazS-1200-PS024-EPB, Pro HazS-1200-PSUNI-EPB, Pro HazS-1200-PS024-EPB-H, Pro HazS-1200-PSUNI-EPB-H, Handwheel

Output Torque (in-lbs / Nm)

400 / 45, 600 / 68, 1200 / 136, PRICE ADDER

Control Type & Feature

24VDC Power, 100-240VAC Power, 24VDC w/ Super Capacitors, 24VDC & 100-240VAC w/ Super Capacitors, 12-24VDC & 24VAC w/ High Capacity Super Capacitors, 12-24VDC, 24VAC & 100-240VAC w/ High Capacity Super Capacitors
