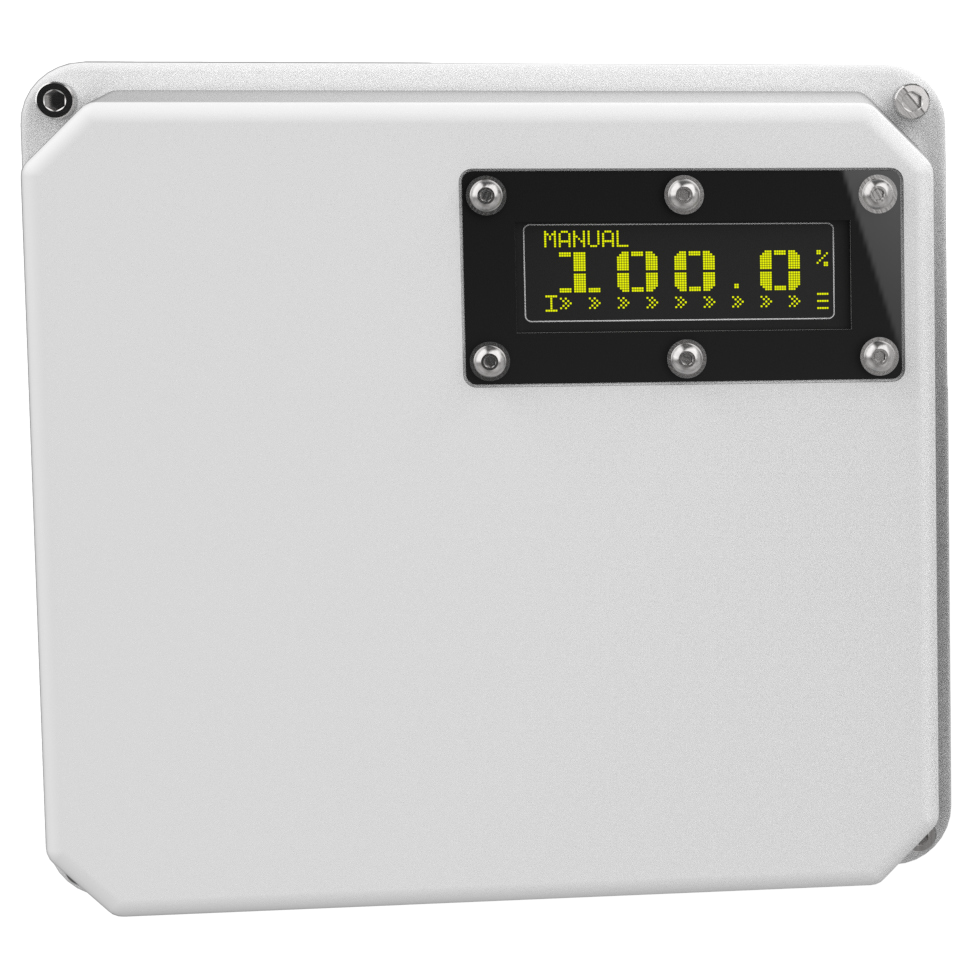

Pro HazS Actuator
The Pro HazS electric actuator is designed after the Pro HasX to be lighter weight and more compact while still maintaining the same features.
Key Features:
- Output torques ranging from 400 in-lbs (45 Nm) to 1,200 in-lbs (135 Nm).
- Multi-voltage acceptance, 12VDC, 24VDC/AC, 110-220VAC input.
- Open/Close, Modulating and ModBus control all built into the base model.
- Enclosures meeting the Hazardous Location standards of UL/CUL Class 1 Division 2 Groups A, B, C & D with Nema 4 Housing.

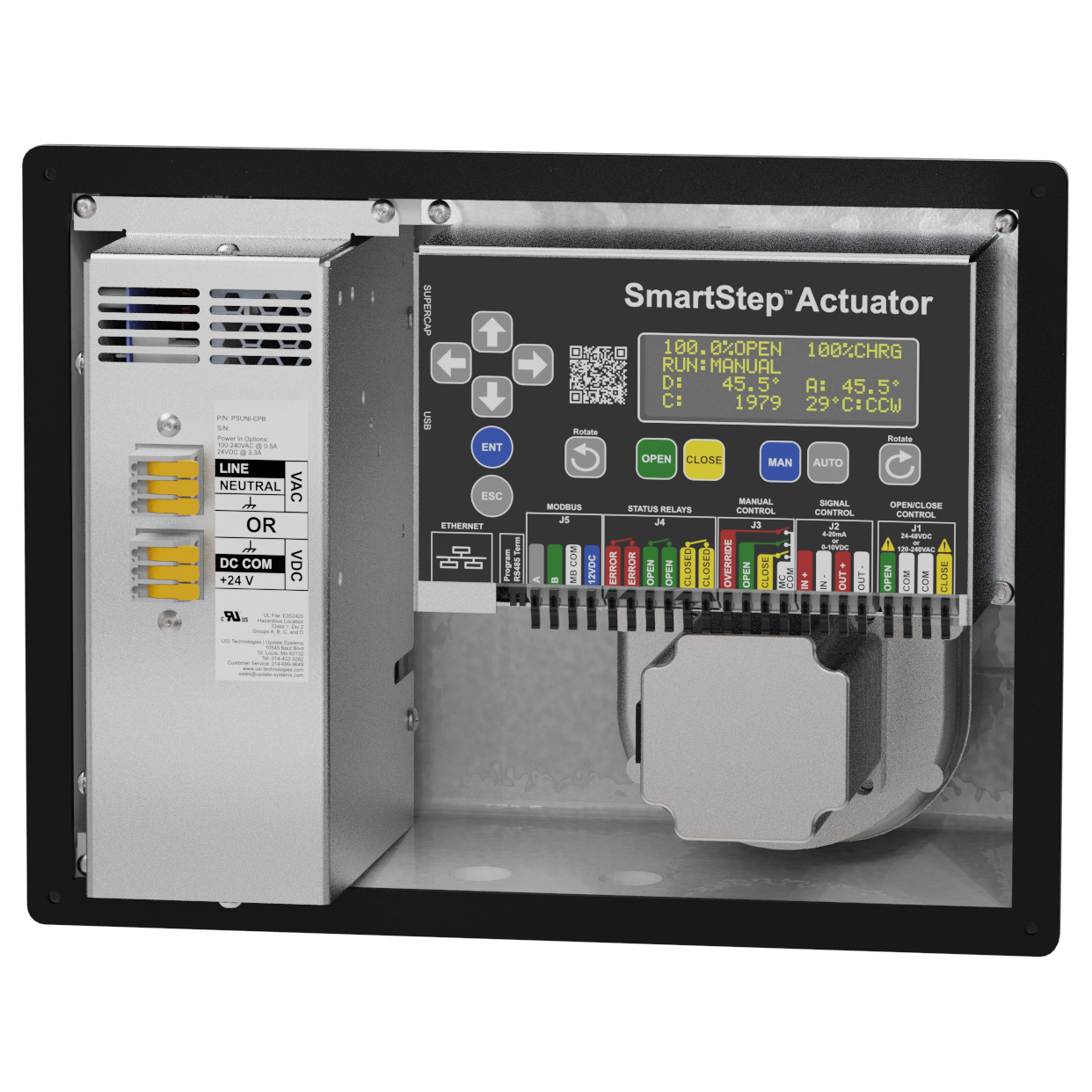

- Easy to setup and calibrate using the firmware and LCD display.
- Standard operating temperature range of -40°C to 60°C (-40°F to 140°F).
- 100% continuous duty cycle as standard.
- F05/F07 ISO5211 mounting base for easy adaption onto valves.
- High level of position accuracy when using a control signal or ModBus.
- Programmable driving speeds (default speed set to 70%).
- Super-capacitor failsafe option with programmable fail position.
- Unlimited programmable cycle span. (Multi-turn capable)
- Open, Close and Error status relays included.
- Manual override as an option.
| Model |
Output Torque |
Control Type & Feature | Price | Lead Time |
|---|---|---|---|---|
| Pro HazS-0400-PS024 | 400 / 45 | 24VDC Power | - | - |
| Pro HazS-0400-PS120 | 400 / 45 | 100-240VAC Power | - | - |
| Pro HazS-0400-PS024-EPB | 400 / 45 | 24VDC w/ Super Capacitors | - | - |
| Pro HazS-0400-PSUNI-EPB | 400 / 45 | 24VDC & 100-240VAC w/ Super Capacitors | - | - |
| Pro HazS-0400-PS024-EPB-H | 400 / 45 | 12-24VDC & 24VAC w/ High Capacity Super Capacitors | - | - |
| Pro HazS-0400-PSUNI-EPB-H | 400 / 45 | 12-24VDC, 24VAC & 100-240VAC w/ High Capacity Super Capacitors | - | - |
| Pro HazS-0600-PS024 | 600 / 68 | 24VDC Power | - | - |
| Pro HazS-0600-PS120 | 600 / 68 | 100-240VAC Power | - | - |
| Pro HazS-0600-PS024-EPB | 600 / 68 | 24VDC w/ Super Capacitors | - | - |
| Pro HazS-0600-PSUNI-EPB | 600 / 68 | 24VDC & 100-240VAC w/ Super Capacitors | - | - |
| Pro HazS-0600-PS024-EPB-H | 600 / 68 | 12-24VDC & 24VAC w/ High Capacity Super Capacitors | - | - |
| Pro HazS-0600-PSUNI-EPB-H | 600 / 68 | 12-24VDC, 24VAC & 100-240VAC w/ High Capacity Super Capacitors | - | - |
| Pro HazS-1200-PS024 | 1200 / 136 | 24VDC Power | - | - |
| Pro HazS-1200-PS120 | 1200 / 136 | 100-240VAC Power | - | - |
| Pro HazS-1200-PS024-EPB | 1200 / 136 | 24VDC w/ Super Capacitors | - | - |
| Pro HazS-1200-PSUNI-EPB | 1200 / 136 | 24VDC & 100-240VAC w/ Super Capacitors | - | - |
| Pro HazS-1200-PS024-EPB-H | 1200 / 136 | 12-24VDC & 24VAC w/ High Capacity Super Capacitors | - | - |
| Pro HazS-1200-PSUNI-EPB-H | 1200 / 136 | 12-24VDC, 24VAC & 100-240VAC w/ High Capacity Super Capacitors | - | - |
| Handwheel | PRICE ADDER | For All Models | - | - |
- Output torques ranging from 265 in-lbs (30 Nm) to 26,550 in-lbs (3000 Nm).
- Operating voltages include 12VDC, 24VDC, 120VAC, 220VAC & 380VAC.
- Floating or modulating control with the option of position feedback or potentiometer (1K or 500Ω).
- Enclosures meeting the Ex-Proof standards of CSA Class 1 Division 1 Groups C & D with IP68 ingress protection.
- Standard operating temperature range of -25°C to 55°C (-13°F to 131°F) with the option for low temperature grease (-40°C/F applications).
- Unique limit-switch setting design makes calibration far easier.
- Two additional auxiliary switches provided as standard.
- Heater and thermostat provided as standard.
- Manual override as standard.
- Highly compact design.
- Base models have a high duty cycle (70%).
- Visual position indicator through fixed lens plate.
| Model | Output Torque (in-lbs / Nm) | Dimensional Drawing | 3D STP |
|---|---|---|---|
| Pro HazS | All Torques | Link to pdf file | Direct Download Link |
| Control Type | Diagram |
|---|---|
| ON/OFF Control | Link to pdf file |
| 1-Wire Control | Link to pdf file |
| 2-Wire Control | Link to pdf file |
| Modulating 4-20mA | Link to pdf file |
| Manual Control | Link to pdf file |
| Status Output Relays | Link to pdf file |
| MODBUS Control | Link to pdf file |
| Pro HazX & HazS Brochure |
| Pro HazS Electrical Datasheet |
| Pro HazS IOM |
| Pro HazS UL Certificate |
